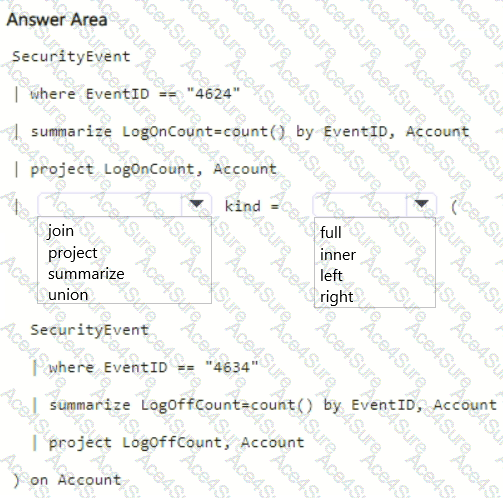

You have a Microsoft Sentine1 workspace that contains a custom workbook named Workbook1.

First dropdown: join

Second dropdown: full

In Microsoft Sentinel and Kusto Query Language (KQL), when you need to combine two tables based on a common field , you use the join operator. In this scenario, both queries pull from the same SecurityEvent table but filter on different Event IDs — 4624 for logon and 4634 for logoff events. To correlate or compare the two results by Account , you need to join them.

The first query returns the number of logon events per account ( LogOnCount ), while the second returns the number of logoff events per account ( LogOffCount ). The join key is Account , which exists in both result sets.

To ensure that all accounts — those who may have only logon events or only logoff events — are included in the visualization, you use a full join. A full join combines matching records from both sides and keeps unmatched r ecords from either side, filling missing values with nulls. This ensures that every account with either a logon or a logoff count appears in the results.

Therefore, the correct query completion is:

SecurityEvent

| where EventID == " 4624 "

| summarize LogOnC ount = count() by EventID, Account

| project LogOnCount, Account

| join kind = full (

SecurityEvent

| where EventID == " 4634 "

| summarize LogOffCount = count() by EventID, Account

| project LogOffCount, Account

) on Account

This query gives a complete view of all accounts and their corresponding logon/logoff counts.

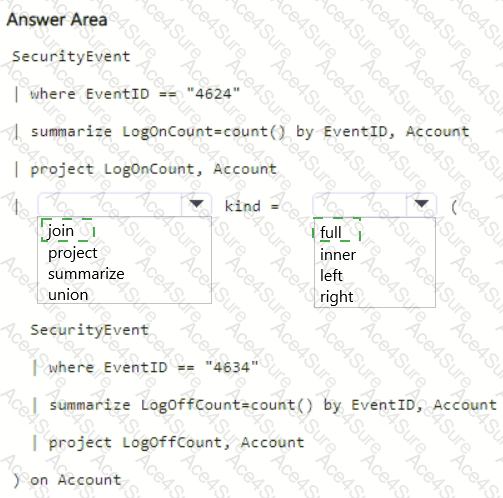

✅ Correct selections:

First box → join

Second box → full
