Comprehensive and Detailed In-Depth Explanation:

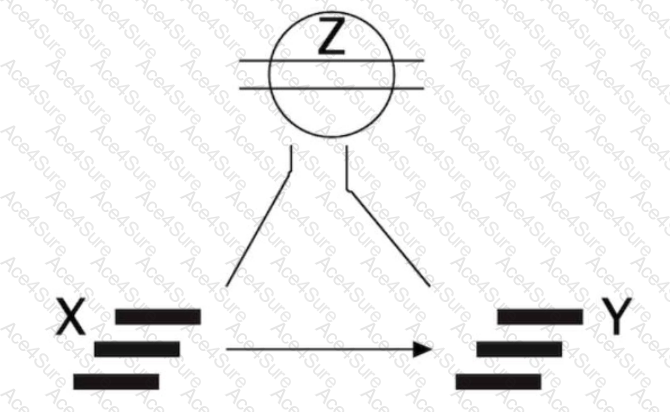

ThisArchiMate Implementation & Migration Layer diagramrepresentsan architecture evolution model, specifically showingtwo plateaus (X and Y) with a Gap (Z) in between them.
Plateausin ArchiMate representstates of an enterprise architectureat different points in time.
Gapsrepresentthe difference or missing elements between two architectural states, indicating what needs to change.
Thecircle with lines (Z) represents a Gap, which identifies what is missing or needs to be addressed when transitioning from Plateau X to Plateau Y.
Analysis of Answer Choices:
✅A. Two plateaus (X and Y) with a transition architecture (Z).→❌Incorrect
A transition architecture is different from a gap.
ATransition Architecture provides an intermediate step between two plateaus, whereasthis diagram is identifying a Gapbetween them.
ArchiMate 3.2 Specification, Section 7.4.3, definesGaps as structural differences, not transition states.
✅B. A gap (Z) associated with two plateaus (X and Y).→✅Correct Answer
The circle with lines (Z) is the correct representation of a Gap in ArchiMate.
Plateau X represents the "Before" state, andPlateau Y represents the "Target" state.
Z (Gap) represents what is missing or what must be addressed to move from X to Y.
ArchiMate 3.2 Specification, Section 7.4.3, states thatGaps are used in architecture migration to analyze missing capabilities or elements.
✅C. A deliverable (Z) exchanged between two projects (X and Y).→❌Incorrect
A deliverable is typically represented as a document or artifactin ArchiMate, not as a Gap.
Z represents a missing element between states, not an exchanged deliverable.
✅D. Two nodes (X and Y) connected by a communication path (Z).→❌Incorrect
Nodes and Communication Paths belong to the Technology Layer, but this diagram represents theImplementation & Migration Layer.
X and Y are plateaus, not technology nodes.
Final Answer:✅B. A gap (Z) associated with two plateaus (X and Y).
References:
ArchiMate 3.2 Specification: Sections 7.4.1 (Plateau) and 7.4.3 (Gap).
Archi User Guide: Modeling architecture migration using Gaps and Plateaus.
