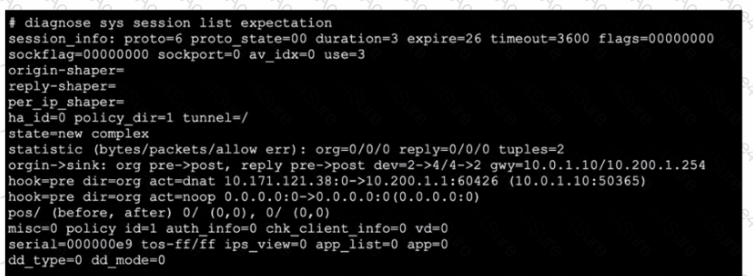

Refer to the exhibit,which shows the output of a diagnose commandWhat two conclusions can you...

Session Creation:The output shows an expected session, likely due to a pinhole, which is a dynamically created rule to allow specific traffic through the firewall.

Routing Decision:

The original direction of traffic comes from the IP address 10.171.121.38.

The next-hop IP address for this traffic is 10.0.1.10 as indicated by the routing decision in the output.

Pinhole Session:Pinhole sessions are typically created for protocols that require additional sessions (e.g., FTP, SIP) to function properly. This ensures the necessary traffic can pass through the firewall.

Debugging Commands:Thediagnose sys session listcommand is used to list session information, which helps in understanding traffic flow and troubleshooting connectivity issues.

References:

Fortinet Network Security Support Engineer Study Guide for FortiOS 7.2​(ebin.pub)​.

General IPsec VPN configuration from Fortinet documentation​(Fortinet Docs)​.
