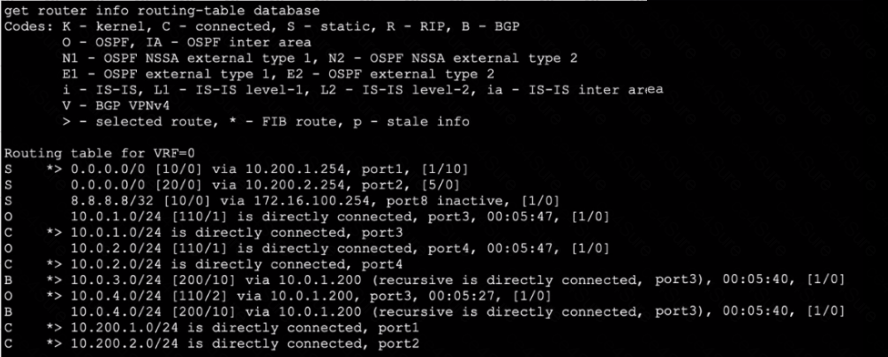

Refer to the exhibit, which shows the modified output of the routing kernel.

The routing table shown in the exhibit lists all the routes known to the FortiGate device. It includes routes learned through different protocols such as BGP, OSPF, and static routes.

The entryS * 0.0.0.0/0 [20/0] via 10.200.2.254, port2, [5/0]indicates that there is a static route to the default gateway (0.0.0.0/0) throughport2with a gateway IP of10.200.2.254.

The asterisk*next to the route signifies that this route is selected and currently active in the forwarding information base (FIB). This means the FortiGate uses this route to forward packets destined for addresses not otherwise specified in the routing table.
