An administrator has recently deployed an NC2 on AWS cluster in the North Virginia region...

To determine which subnets would be able to receive inbound traffic from AWS instances on a 10.0.0.0/22 network segment, we need to look at the configured subnets and their CIDR ranges, as well as the custom network security group ' s inbound rules.

Available CIDR ranges in VPC:

70.73.0.0/16

10.79.107.0/24

10.0.0.0/22

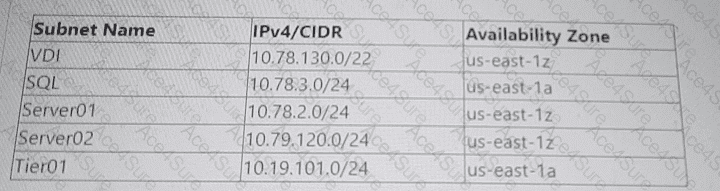

Configured Subnets in NC2 AWS VPC:

VDI: 10.78.130.0/22

SQL: 10.78.3.0/24

Server01: 10.78.2.0/24

Server02: 10.79.120.0/24

Tier01: 10.19.101.0/24

Custom Network Security Group Inbound Rule:

Allows all inbound traffic from 10.0.0.0/22.

Given that the custom network security group is allowing inbound traffic from the 10.0.0.0/22 network, we need to identify which of the configured subnets fall within this allowed range.

Analysis:

The subnets 10.78.130.0/22, 10.78.3.0/24, 10.78.2.0/24, 10.79.120.0/24, and 10.19.101.0/24 do not overlap with 10.0.0.0/22. Therefore, none of these subnets would naturally fall within the 10.0.0.0/22 range directly.

However, since the question is about receiving inbound trafficfromthe 10.0.0.0/22 network and considering security group rules, all subnets mentioned can technically receive traffic if the inbound rules are configured correctly, but since we are strictly asked about the configuration from the image and the overlap in the ranges:

Server01 (10.78.2.0/24)andTier01 (10.19.101.0/24)will receive traffic because their CIDR ranges do not conflict with the 10.0.0.0/22 range, thus allowing traffic without additional restrictions.

Nutanix Clusters on AWS Administration Guide

AWS VPC and Subnet documentation

Network Security Group rules configuration in Nutanix documentation
