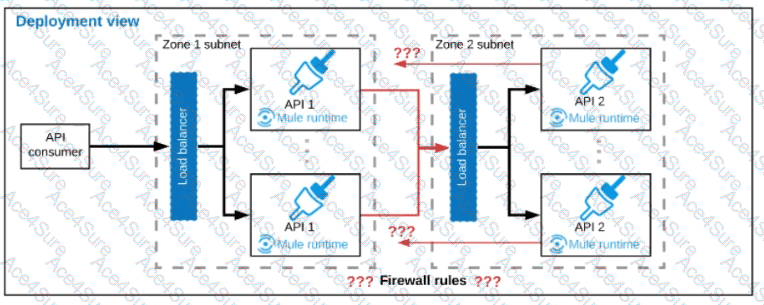

Refer to the exhibit.

Explanation

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

* The question says “each API is deployed to multiple redundant Mule runtimes”, that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

* Hence correct way is to enable communication from each API’s Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one
