Click the Exhibit button.

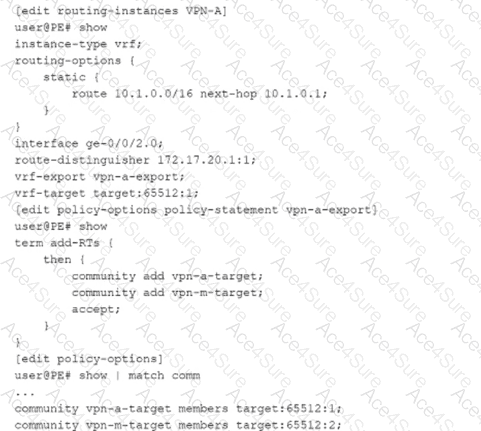

The exhibit shows the configuration of a VRF (Virtual Routing and Forwarding) instance on a Juniper PE router. Let's break down the key components:

VRF Configuration (VPN-A)

The instance type is VRF, meaning this is an L3VPN (Layer 3 VPN).

The routing instance contains a static route (10.1.0.0/16 next-hop 10.1.0.1).

The interface ge-0/0/2.0 is assigned to the VRF.

Route Distinguisher (RD): 172.17.20.1:1

VRF-Export Policy: vpn-a-export

VRF-Target: target:65512:1 (This defines which routes will be imported into the VRF).

VRF Export Policy (vpn-a-export)

The vpn-a-export policy adds two BGP communities (route targets) to exported VPN routes:

community add vpn-a-target;

community add vpn-m-target;

accept;

The vpn-a-target community corresponds to target:65512:1.

The vpn-m-target community corresponds to target:65512:2.

Policy-Options (Community Definitions)

community vpn-a-target members target:65512:1;

community vpn-m-target members target:65512:2;

This confirms that routes exported from this VRF will have BOTH target:65512:1 and target:65512:2.

Evaluating the Answer Choices

✅ Option A: "VPN routes are exported with the target:65512:1 and target:65512:2 route targets."

The vpn-a-export policy explicitly adds both vpn-a-target (65512:1) and vpn-m-target (65512:2) to exported routes.

This is correct. ✅

❌ Option B: "You cannot use the vrf-target and vrf-export statements in the same VRF."

This is incorrect.

Juniper allows the use of both vrf-target and vrf-export in the same VRF:

vrf-target is used for importing routes.

vrf-export defines export policies (which can add additional route targets).

This is incorrect. ❌

❌ Option C: "VPN routes with the target:65512:1 and target:65512:2 route targets are imported."

The vrf-target target:65512:1; statement only controls importing routes.

The import policy does not include target:65512:2, so routes tagged with target:65512:2 alone would not be imported into this VRF.

This is incorrect. ❌

❌ Option D: "VPN routes are exported with only the target:65512:1 route target."

The export policy (vpn-a-export) clearly adds both 65512:1 and 65512:2.

This is incorrect. ❌

Final Answer:

✅ A. VPN routes are exported with the target:65512:1 and target:65512:2 route targets.

Verification from Juniper Documentation

Juniper MPLS L3VPN Configuration Guide confirms that vrf-target is used for importing, while vrf-export can be used for exporting multiple route targets.

Juniper Routing Policy Documentation states that export policies can add multiple BGP communities (route targets).

RFC 4364 (BGP/MPLS IP VPNs) defines the use of route targets for VPN route control.
