ExhibitYou want to provide better performance for the video traffic that traverses your network The...

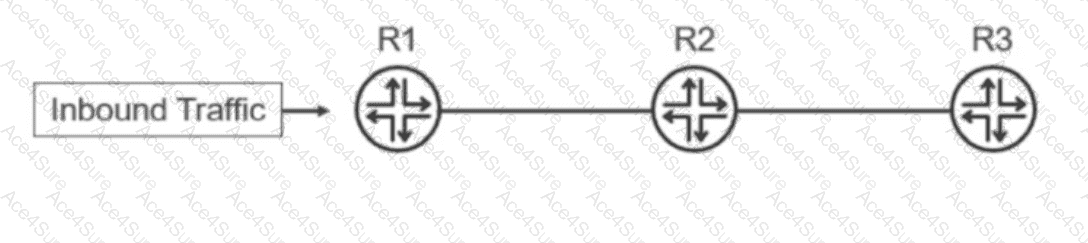

The exhibit illustrates a standard end-to-end Class of Service (CoS) path consisting of an edge router (R1) and core/intermediate routers (R2 and R3).

Edge Classification (Option B): The scenario specifies that video traffic enters the network without any class-of-service markings. Because there are no DSCP or 802.1p bits to inspect, the ingress router (R1) cannot use simple Behavior Aggregate (BA) classification. Instead, it must use Multifield (MF) classification. MF classification allows the router to look deeper into the packet (Source/Destination IP, Protocol, Port numbers) to identify the video stream and assign it to a specific forwarding class. * Core Classification (Option D): Once R1 has identified the traffic, it will typically apply a rewrite rule on its egress interface to mark the packets with a specific CoS value (like a DSCP code). Consequently, the downstream routers (R2 and R3) do not need to perform expensive deep-packet inspection again. They can use Behavior Aggregate (BA) classification, which simply looks at the markings in the packet header to determine the appropriate forwarding priority.

Option A and C: These are incorrect because BA classification is impossible on unmarked ingress traffic, and performing MF classification in the core is inefficient and not a recommended Juniper design practice for high-speed transit.
