Exhibit:How many stages are shown in the exhibit?

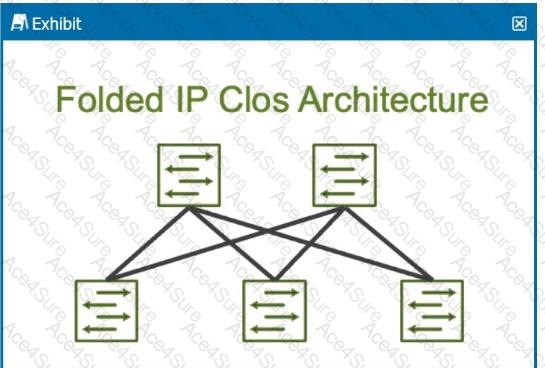

The exhibit shows a Folded IP Clos Architecture, which is also referred to as a 3-stage Clos network design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

The Folded Clos architecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall 3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.
