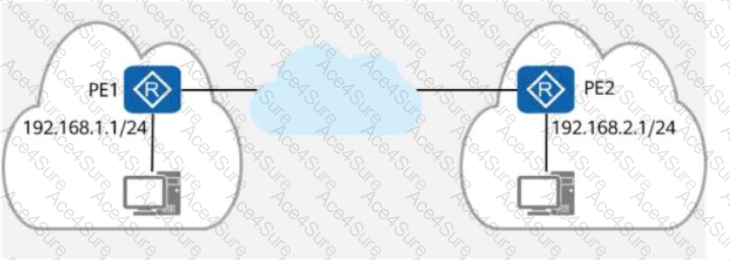

The figure shows the logical network architecture of a migration project.

Comprehensive and Detailed In-Depth Explanation:

1. Understanding the Network Setup

PE1 (Provider Edge 1) is the gateway for network 192.168.1.1/24.

PE2 (Provider Edge 2) is the gateway for network 192.168.2.1/24.

A cloud-based backbone connects PE1 and PE2.

To verify end-to-end communication, engineers need to check reachability between PE1 and PE2.

2. Evaluating Each Answer Option

Option A: "Configuring NQA on PE1 and PE2, with the destination address being the IP address of each other."

✅ Correct.

NQA (Network Quality Analysis) is a network testing tool that allows connectivity testing between two devices.

Configuring NQA between PE1 and PE2 will verify end-to-end reachability.

Option B: "On PE1 and PE2, checking whether the ARP table contains the ARP entry of the peer network segment."

❌ Incorrect.

ARP (Address Resolution Protocol) is only used for resolving MAC addresses within the same broadcast domain.

Since PE1 and PE2 are in different network segments (separated by a routed network), they will not have ARP entries for each other.

Instead, routing entries should be checked, not ARP.

Option C: "On PE1, using 192.168.1.1 as the source address to ping 192.168.2.1."

✅ Correct.

A simple ping test using the source address of PE1 (192.168.1.1) to reach PE2 (192.168.2.1) will verify whether routing between the two locations is functional.

Option D: "On PE1 and PE2, checking whether there are routes to each other’s network segment in the routing tables."

✅ Correct.

If routing is not configured correctly, PE1 and PE2 will not know how to reach each other.

Checking the routing table ensures that both PEs have the correct next-hop information.

Final Answer:

✅ A, C, and D are correct.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Using NQA for Network Connectivity Testing

Verifying Routing Table Entries for Inter-Network Communication

Understanding ARP and Its Limitations in Routed Networks
