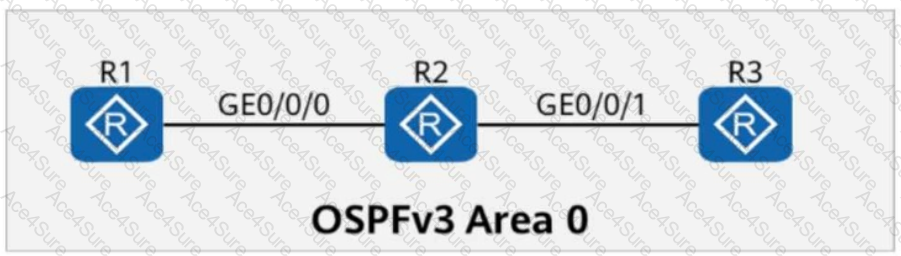

On the OSPFv3 network shown in the figure, the LSDB (Link-State Database) of R2 contains...

1. Understanding Router-LSAs in OSPFv3

Router-LSA (Type 1 LSA) is generated by every OSPFv3 router to describe its own links and connected networks within the same area.

Each router in an OSPF area generates exactly one Router-LSA to advertise its own topology information.

Router-LSAs are flooded throughout the area but do not cross area boundaries.

2. Analyzing the Given OSPFv3 Network

The topology consists of three routers: R1, R2, and R3, all connected in OSPFv3 Area 0.

Since all three routers participate in OSPFv3, each router generates its own Router-LSA (Type 1 LSA).

R2, as an OSPF router, will have its own Router-LSA and also receive the Router-LSAs from R1 and R3.

3. Counting the Number of Router-LSAs in R2’s LSDB

R1 generates 1 Router-LSA (for itself).

R2 generates 1 Router-LSA (for itself).

R3 generates 1 Router-LSA (for itself).

Total Router-LSAs in R2’s LSDB = 3 (one from each router).

Final Answer:

Answer: 3

HCIP-Datacom-Advanced Routing & Switching Technology References:

OSPFv3 LSA Types and Their Roles

Understanding Router-LSA (Type 1) and Its Function in LSDB
