On the IS-IS IPv6 network shown in the figure, after the network becomes stable:R1 can...

Comprehensive and Detailed In-Depth Explanation:

Understanding the IPv6 Addressing and IS-IS Network

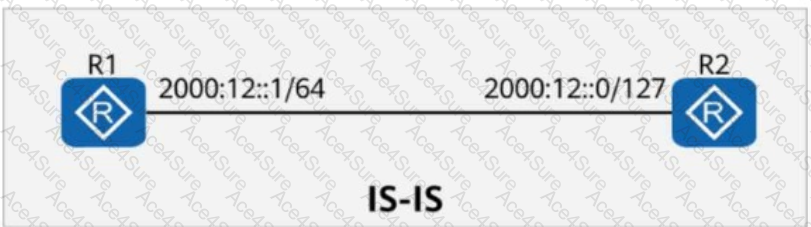

IPv6 Addressing in the Figure:

R1 has the address: 2000:12::1/64

R2 has the address: 2000:12::0/127

The link between them is using a /127 subnet (2000:12::0/127).

Behavior of IPv6 /127 Subnet Mask

In IPv6, a /127 prefix is commonly used on point-to-point links to avoid the issue of subnet-router anycast (::0).

RFC 6164 recommends using /127 instead of /64 for point-to-point links to reduce unnecessary anycast behavior.

2000:12::0 is the network address (first address in the subnet) and is not assigned to an interface.

Analyzing the Two Statements in the Question

Statement 1: "R1 can ping 2000:12::0" ❌ (Incorrect)

In IPv6, the first address (::0) in a /127 subnet is typically reserved as a network address and not assigned to any router.

R1 cannot ping 2000:12::0 because it is not assigned to R2 as an active IP.

Correct ping targets would be:

R1 pinging R2’s actual address (2000:12::1 or 2000:12::2 depending on numbering).

Statement 2: "display ipv6 neighbors command can be used to display the MAC address corresponding to 2000:12::0" ❌ (Incorrect)

The display ipv6 neighbors command is used to show the MAC address of an active neighbor (i.e., a reachable device).

Since 2000:12::0 is not assigned to a specific router, it will not have a MAC address in the neighbor table.

Final Conclusion:

❌ R1 cannot ping 2000:12::0 because it is the network address in a /127 subnet.❌ The display ipv6 neighbors command cannot show a MAC address for 2000:12::0 because it is not assigned to a router.

Thus, the correct answer is: B. FALSE.
