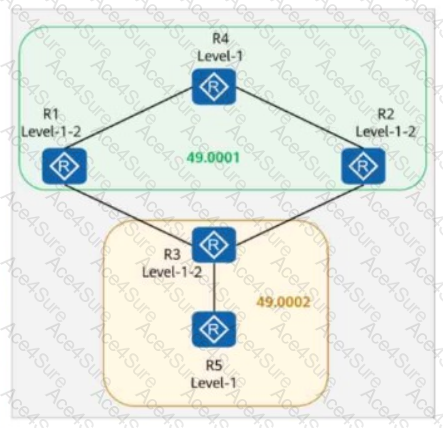

On the IS-IS IPv6 network shown in the figure, multi-topology is enabled on all routers.

Comprehensive and Detailed In-Depth Explanation:

Understanding the IS-IS Network Structure in the Question:

IS-IS Area IDs and Router Roles

Area 49.0001 (Level-1-2): Contains R1, R2, R4 (all Level-1-2 routers).

Area 49.0002 (Level-1-2 & Level-1): Contains R3 (Level-1-2) and R5 (Level-1 only).

Key Command Used: ipv6 default-route-advertise always level-1

This command forces R4 to advertise a default route (::/0) to all Level-1 routers within its area.

Only Level-1 routers in the same area as R4 will receive the default route.

Level-2 routers do not receive or propagate this default route unless additional configuration is done.

Route Distribution Analysis:

R4 (Level-1-2) is configured to advertise a default route to Level-1 routers.

R1 and R2 (both Level-1-2) are in the same area (49.0001) as R4, so they receive the default route.

R3 (Level-1-2) is in area 49.0002 but connects to R4 (49.0001), meaning it can receive the default route through its Level-1 connection.

R5 (Level-1 only) is in area 49.0002, but R4 does not propagate the default route to another Level-1 area (49.0002).

Since R5 is a Level-1 router and does not have a Level-2 connection, it cannot receive the default route from R4.

Final Conclusion:

✅ R1 receives the default route.✅ R2 receives the default route.✅ R3 receives the default route.❌ R5 does NOT receive the default route.

Thus, the correct answer is: C. R5.
