(Refer to the exhibits.

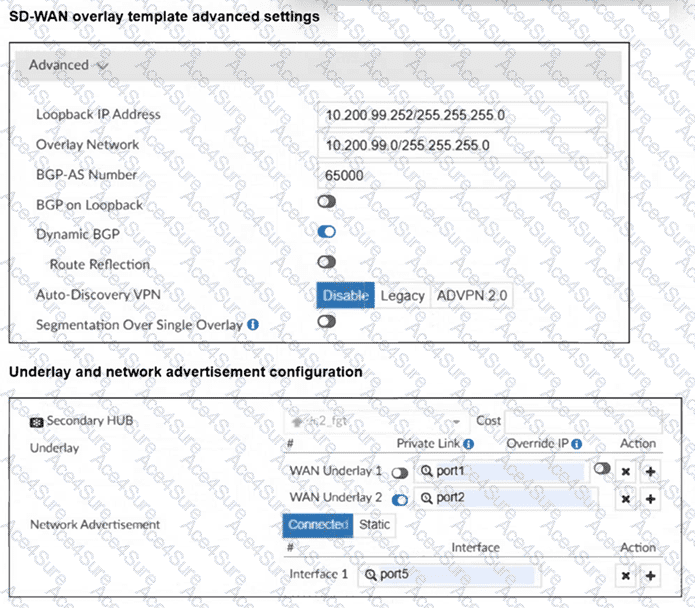

From the Underlay and network advertisement configuration exhibit for the Secondary HUB:

Under Underlay, the template explicitly lists:

WAN Underlay 1 = port1

WAN Underlay 2 = port2

In FortiManager SD-WAN Overlay Orchestrator, underlay interfaces selected for a hub are the transports used to build the overlay IPsec tunnels (one overlay per underlay, per peer as defined by the template). Because both port1 and port2 are configured as underlays, FortiManager will build overlay tunnels over both underlay links. That supports:

Option C (overlay tunnel on port1)

Option B (overlay tunnel on port2)

For the BGP neighbor options:

The Network Advertisement section shows Interface 1 = port5, which indicates a LAN/internal interface whose connected or static networks may be advertised into the overlay routing domain. This does not make port5 a BGP neighbor interface; it is the interface whose routes are being advertised.

The template indicates Dynamic BGP is enabled. In Overlay Orchestrator designs, BGP neighbor relationships are formed across the overlay tunnel interfaces / overlay endpoints, not directly on the raw underlay interfaces (port1/port2) and not on the advertised LAN interface (port5). Therefore, options A and D are not valid conclusions from what is shown.

So, the two correct conclusions are B and C.
