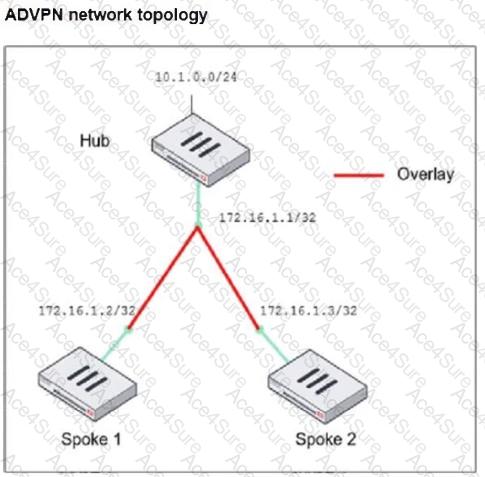

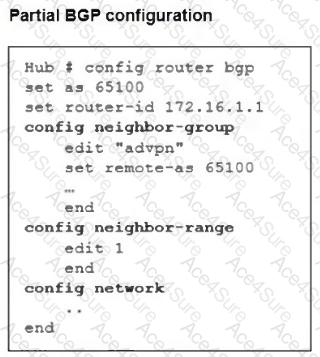

Refer to the exhibit, which shows the ADVPN network topology and partial BGP configuration.

In the given ADVPN (Auto-Discovery VPN) topology, BGP is being used to dynamically establish routes between spokes. The neighbor-range configuration is crucial for simplifying BGP peer setup by automatically assigning neighbors based on their IP range.

set neighbor-group advpn

● Theneighbor-groupparameter is used to apply pre-defined settings (such as AS number) to dynamically discovered BGP neighbors.

● Theadvpnneighbor-group is already defined in the configuration, and assigning it to the neighbor-range ensures consistent BGP settings for all spoke neighbors.

set prefix 172.16.1.0 255.255.255.0

● This command allowsdynamic BGP peer discoveryby defining a range of potential neighbor IPs (172.16.1.1 - 172.16.1.255).

● Sinceeach spoke has a unique /32 IPwithin this subnet, this ensures that any spoke within the172.16.1.0/24range can automatically establish a BGP session with the hub.
