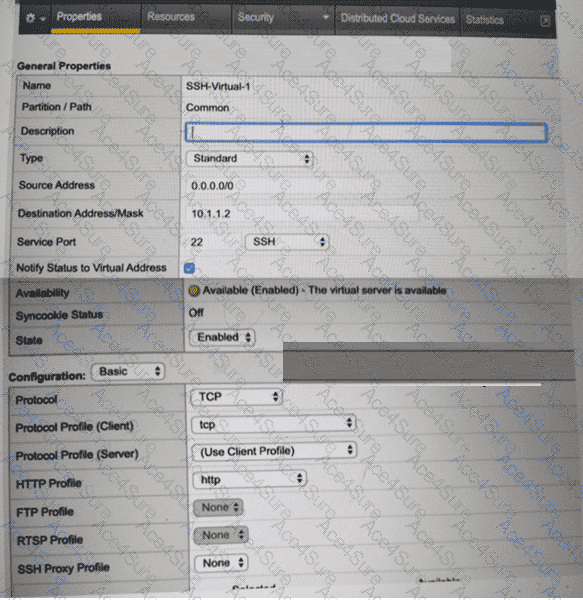

Refer to the exhibit.

SSH is a Layer 4 TCP-based protocol that operates on TCP port 22 and does not use HTTP in any capacity. In the exhibit, the Virtual Server is configured with an HTTP Profile applied, which is inappropriate for SSH traffic and causes connection failures.

According to the BIG-IP Administration: Data Plane Configuration documentation:

An HTTP profile must only be applied to Virtual Servers handling HTTP or HTTPS traffic.

When an HTTP profile is attached, BIG-IP expects HTTP headers and attempts to parse application-layer data.

Non-HTTP protocols such as SSH, FTP (control), SMTP, and other raw TCP services will fail if an HTTP profile is enabled.

Why the other options are incorrect:

A. Set Protocol to UDPSSH uses TCP, not UDP. Changing the protocol would break SSH entirely.

B. Set Source Address to 10.1.1.2The source address setting controls client access restrictions and is unrelated to protocol parsing issues.

C. Set Destination Address/Mask to 0.0.0.0/0The destination address is already valid for a specific SSH service and does not impact protocol handling.

Correct Resolution:

The BIG-IP Administrator should remove the HTTP Profile (set it to None) so the Virtual Server functions as a pure Layer 4 TCP service, allowing SSH connections to pass through successfully.
