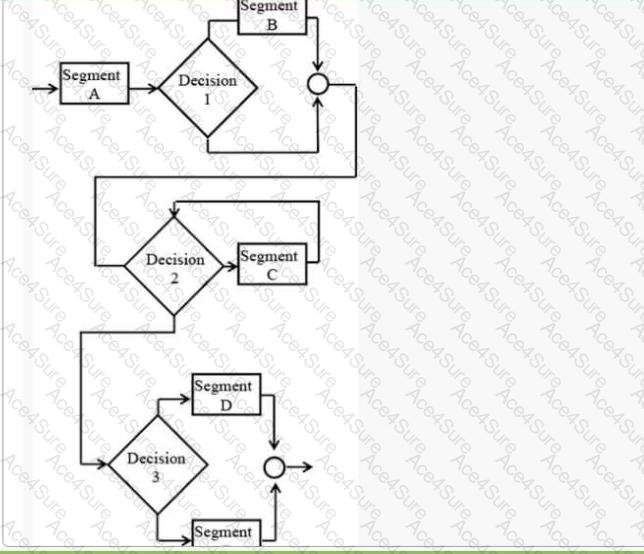

Branch coverage, also known as decision coverage, ensures that every possible branch (i.e., true and false conditions) in the code is executed at least once. To determine the number of tests necessary for branch coverage in the given control flow diagram, we must count the distinct branches resulting from each decision point.
Decision 1: 2 branches (true and false)
Decision 2: 2 branches (true and false)
Decision 3: 2 branches (true and false)
Since each decision has two branches and they are independent of each other, the number of distinct paths that need to be tested is: 2(Decision1)+2(Decision2)+2(Decision3)=6 branches2 (Decision 1) + 2 (Decision 2) + 2 (Decision 3) = 6 \text{ branches}2(Decision1)+2(Decision2)+2(Decision3)=6 branches
However, the number of tests needed to cover all branches is the maximum number of branches any path could take, considering that a single test might cover multiple branches. For the given control diagram, 4 tests will suffice to cover all branches:
Path: A -> Decision 1 (true) -> B
Path: A -> Decision 1 (false) -> Decision 2 (true) -> C
Path: A -> Decision 1 (false) -> Decision 2 (false) -> Decision 3 (true) -> D
Path: A -> Decision 1 (false) -> Decision 2 (false) -> Decision 3 (false)
These four tests ensure all branches are covered at least once.
