ContextYou must resolve issues that a CIS Benchmark tool found for the kubeadm provisioned cluster.

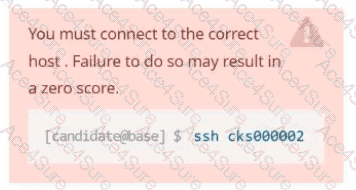

1) SSH to the right node

ssh cks000002

sudo -i

2) Fix kubelet CIS findings

2.1 Edit kubelet config (MAIN place in kubeadm clusters)

vi /var/lib/kubelet/config.yaml

A) Set anonymous-auth to false

Find (or add) this block exactly:

authentication:

anonymous:

enabled: false

B) Use Webhook authentication (recommended by task)

Ensure this exists under authentication:

webhook:

enabled: true

C) Use Webhook authorization and NOT AlwaysAllow

Find (or add) this block exactly:

authorization:

mode: Webhook

When done, your file should contain something like this (exact structure to aim for):

authentication:

anonymous:

enabled: false

webhook:

enabled: true

x509:

clientCAFile: /etc/kubernetes/pki/ca.crt

authorization:

mode: Webhook

If x509: section isn’t there, it’s usually already present in kubeadm; don’t panic. Only the task-required parts are: anonymous false + webhook enabled + authorization mode Webhook.

2.2 Restart kubelet (required for config.yaml changes)

systemctl daemon-reload

systemctl restart kubelet

systemctl status kubelet --no-pager

Quick confirm (optional but fast):

grep -nE "anonymous|webhook|authorization|mode" /var/lib/kubelet/config.yaml

3) Fix etcd CIS finding: --client-cert-auth=true

3.1 Edit etcd static pod manifest (kubeadm path)

vi /etc/kubernetes/manifests/etcd.yaml

Find the container command: args that look like:

- command:

- etcd

- --something=...

Ensure this line exists exactly in the list:

- --client-cert-auth=true

Also ensure this is present (usually already is, but add if missing):

- --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt

Example snippet (what you want the args area to include):

- command:

- etcd

- --client-cert-auth=true

- --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt

3.2 Apply etcd change (auto-restart happens)

Just save the file. Kubelet will restart etcd automatically.

Watch it restart (pick one depending on runtime):

If Docker runtime (your task mentions Docker):

docker ps | grep etcd

If you don’t see it briefly, wait 2–5 seconds and rerun:

docker ps | grep etcd

(Alternative if available)

crictl ps | grep etcd

4) Final quick validation (fast exam check)

Kubelet config check

grep -n "enabled: false" -n /var/lib/kubelet/config.yaml | head

grep -n "webhook" /var/lib/kubelet/config.yaml

grep -n "authorization" /var/lib/kubelet/config.yaml

etcd arg check

grep -n "client-cert-auth" /etc/kubernetes/manifests/etcd.yaml
