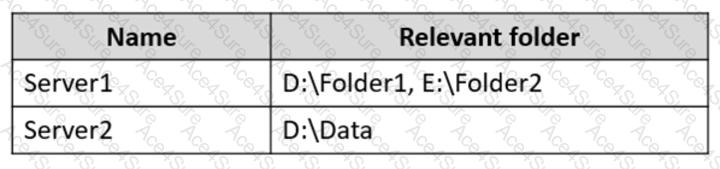

You have on-premises file servers that run Windows Server as shown in the following table.

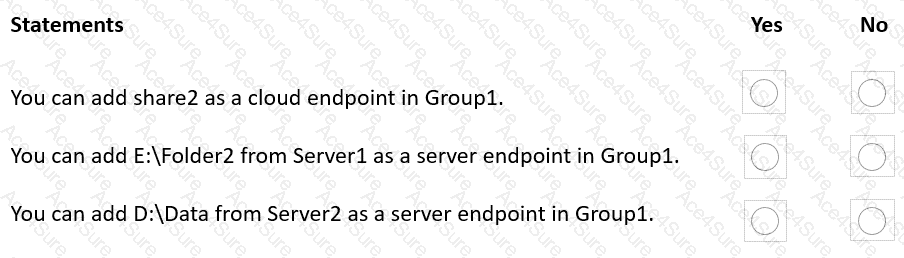

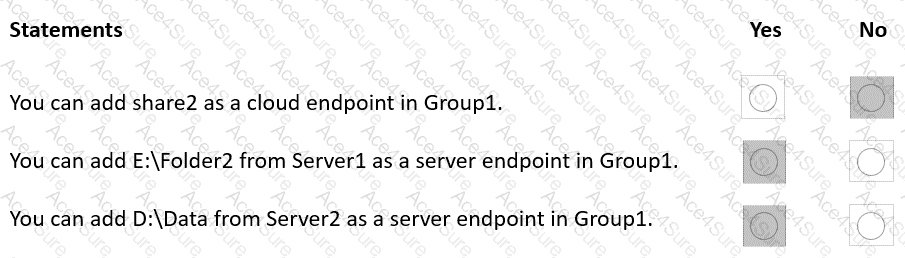

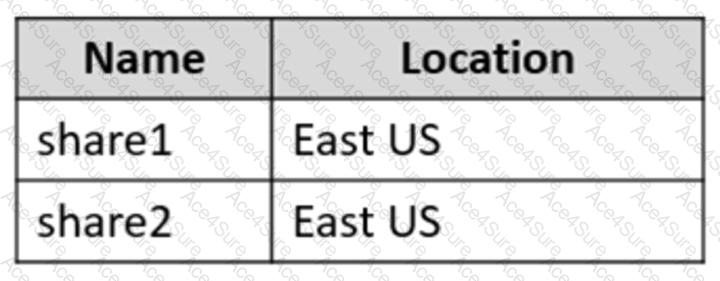

The Azure File Sync design guidance in Administering Windows Server Hybrid Core Infrastructure explains that a sync group defines one sync topology and is anchored by exactly one cloud endpoint (an Azure file share) . The material states: “Each sync group contains a single cloud endpoint… Additional Azure file shares must be plac ed in separate sync groups.” Consequently, after Group1 uses share1 as its cloud endpoint, share2 cannot be added to the same sync group , which makes the first statement No .

For server endpoints, the guide notes: “A server endpoint represents a specific pa th on a registered Windows Server… A server can host multiple server endpoints, including in the same sync group, provided paths don’t overlap (no parent/child or identical paths).” Because D:\Folder1 is already in Group1, adding E:\Folder2 from the same S erver1 is supported and non-overlapping, so the second statement is Yes .

Finally, multi-server synchronization is a core capability: “Multiple servers can be added as server endpoints to the same sync group to enable branch-to-branch and server-to-cloud sy nc; contents are merged in the Azure file share namespace.” Therefore, adding D:\Data from Server2 as another server endpoint in Group1 is fully supported, making the third statement Yes .

These rules satisfy the scenario: one cloud endpoint per sync group, multiple non-overlapping server endpoints (including multiple from the same server), and multi-server participation in the same group.
