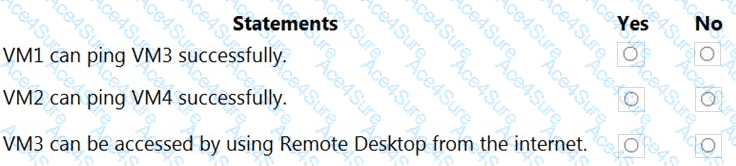

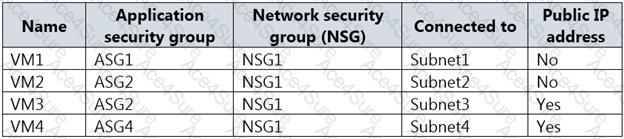

You have the Azure virtual networks shown in the following table.

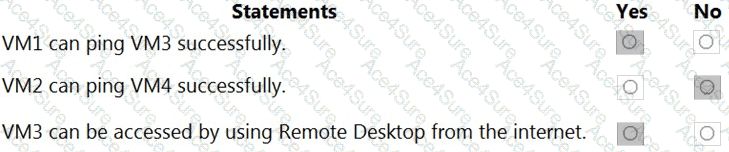

Box 1: Yes

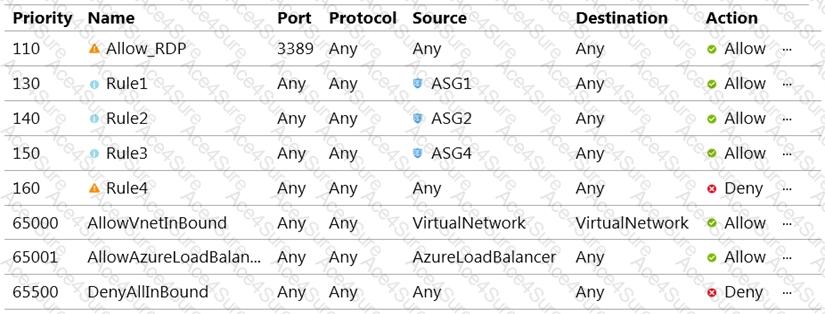

VM1 and VM3 are on peered VNets. The firewall rules with a source of ASG1 and ASG2 allow ‘any’ traffic on ‘any’ protocol so pings are allowed between VM1 and VM3.

Box 2: No

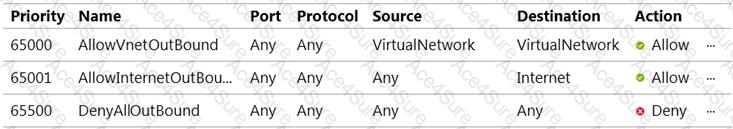

VM2 and VM4 are on separate VNets and the VNets are not peered. Therefore, the pings would have to go over the Internet. VM4 does have a public IP and the firewall allows pings. However, for VM2 to be able to ping VM4, VM2 would also need a public IP address. In Azure, pings don’t go out through the default gateway as they would in a physical network. For an Azure VM to ping external IPs, the VM must have a public IP address assigned to it.

Box 3: Yes

VM3 has a public IP address and the firewall allows traffic on port 3389.
