Refer to the exhibit.

Cisco 300-510 Question Answer

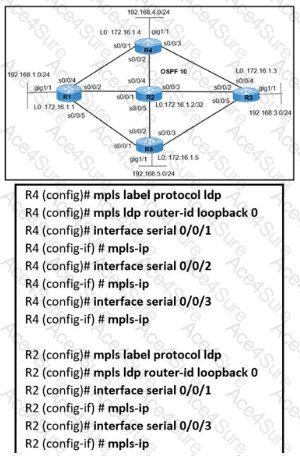

Refer to the exhibit. MPLS traffic from 192.168.4.0/24 to 192.168.5.0/24 is failing to pass over the link from R4 to R2. The engineer verified that:

Cisco Express Forwarding Is enabled on all routers.

All routers reach all networks via OSPF.

MPLS traffic from 192.168.1.0/24 to 192.168.3.0/24 is passing normally over the link from R1 to R2.

Which action resolves the issue?

On router R4, remove the mpls ip command on the s/O/O/2 interface.

On router R2, configure the mpls ip command on the SIO/O/4 interface.

On router R4, configure the mpls label protocol Idp command on all serial interfaces.

On router R2, configure the mpls label protocol Idp command on the interface.
