Refer to the exhibit.

Cisco 300-510 Question Answer

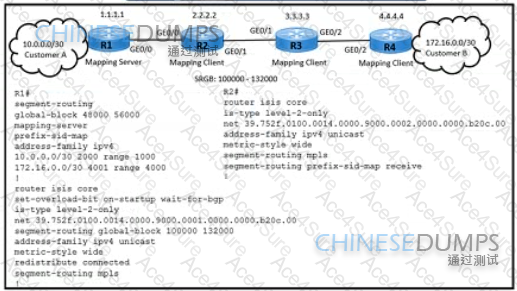

Refer to the exhibit. Customer A and customer B are connecting through a service provider network with these requirements

R1 acts as the mapping server to connect 10 0 0.0/30 and 172.16.0.0/30 networks

R1 and R2 are using nondefault SRG8 range to allocate SID.

R2 ads as the mapping client for transient traffic originating from customer A

Which configuration meets the requirements?

Remove allocation of prefix SlDs for 10.0.0.0/30 and 172.16.0.0/30 on R1.

Configure segment-routing prefix-sid-map advertise-local on R1

Allocate prefix SIDs for 10.0.0.0-30 and 172.16 0.0/30 subnets on R2

Configure segment-routing prefix-sid-map advertise-local on R2.
